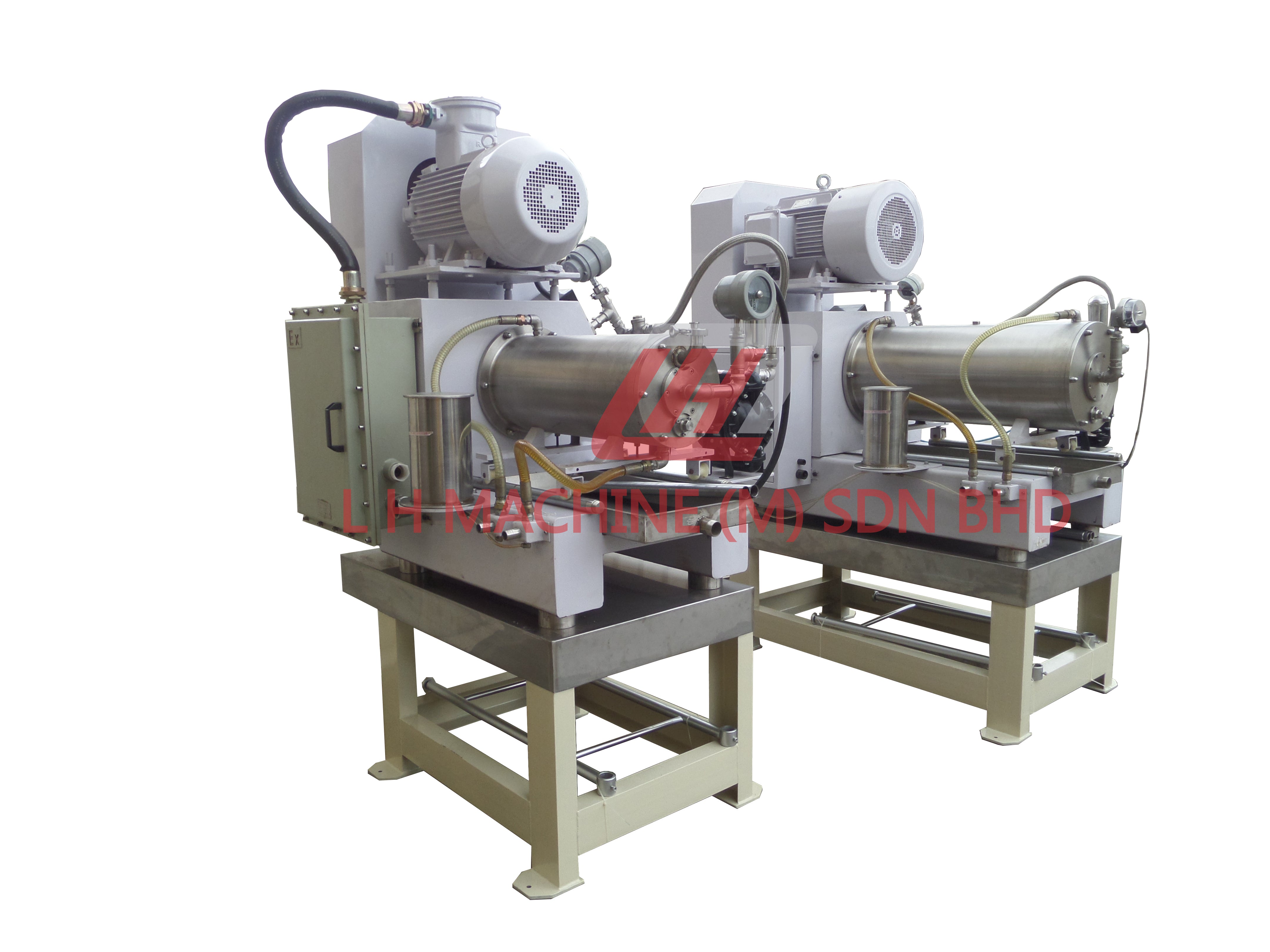

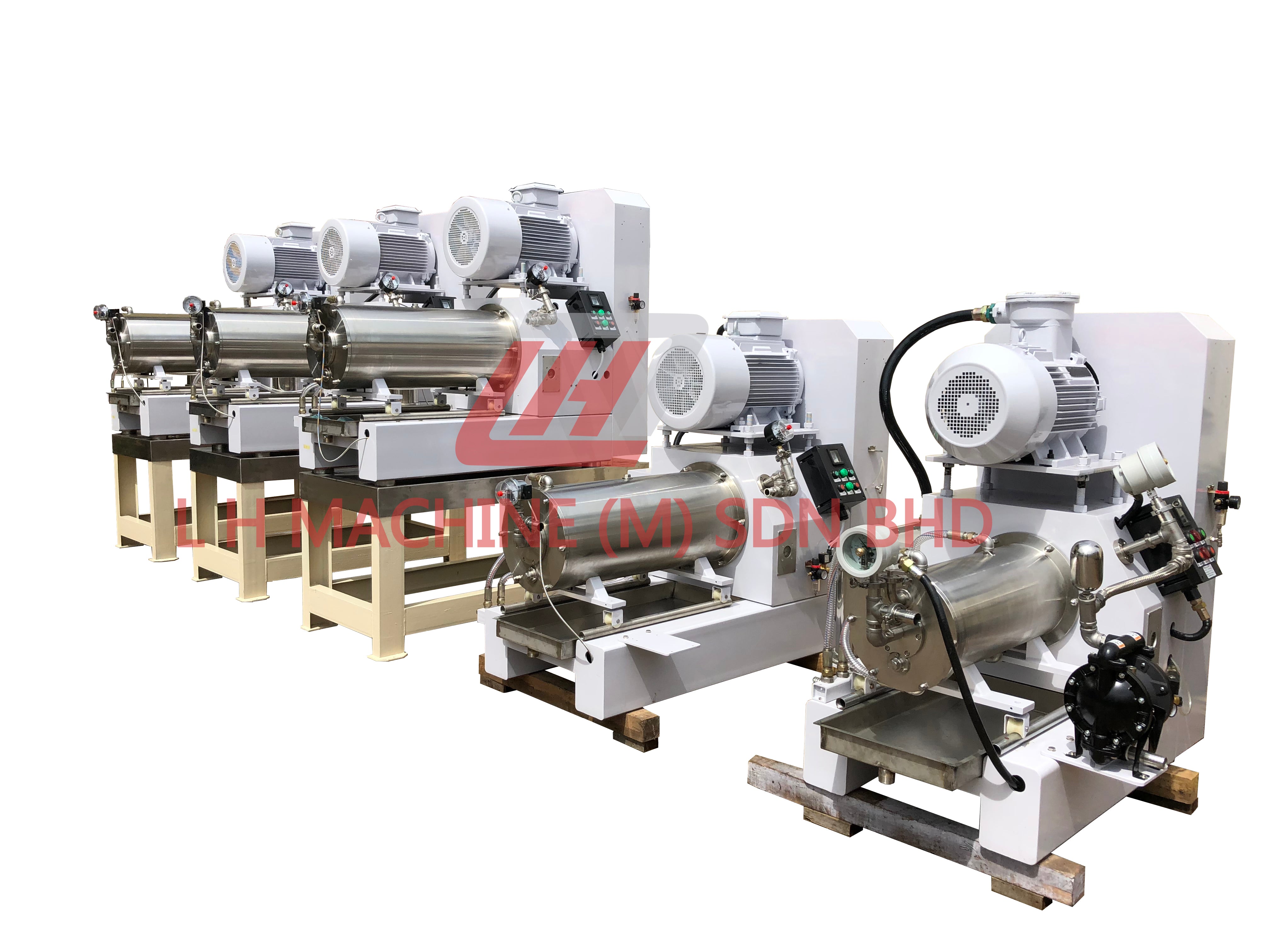

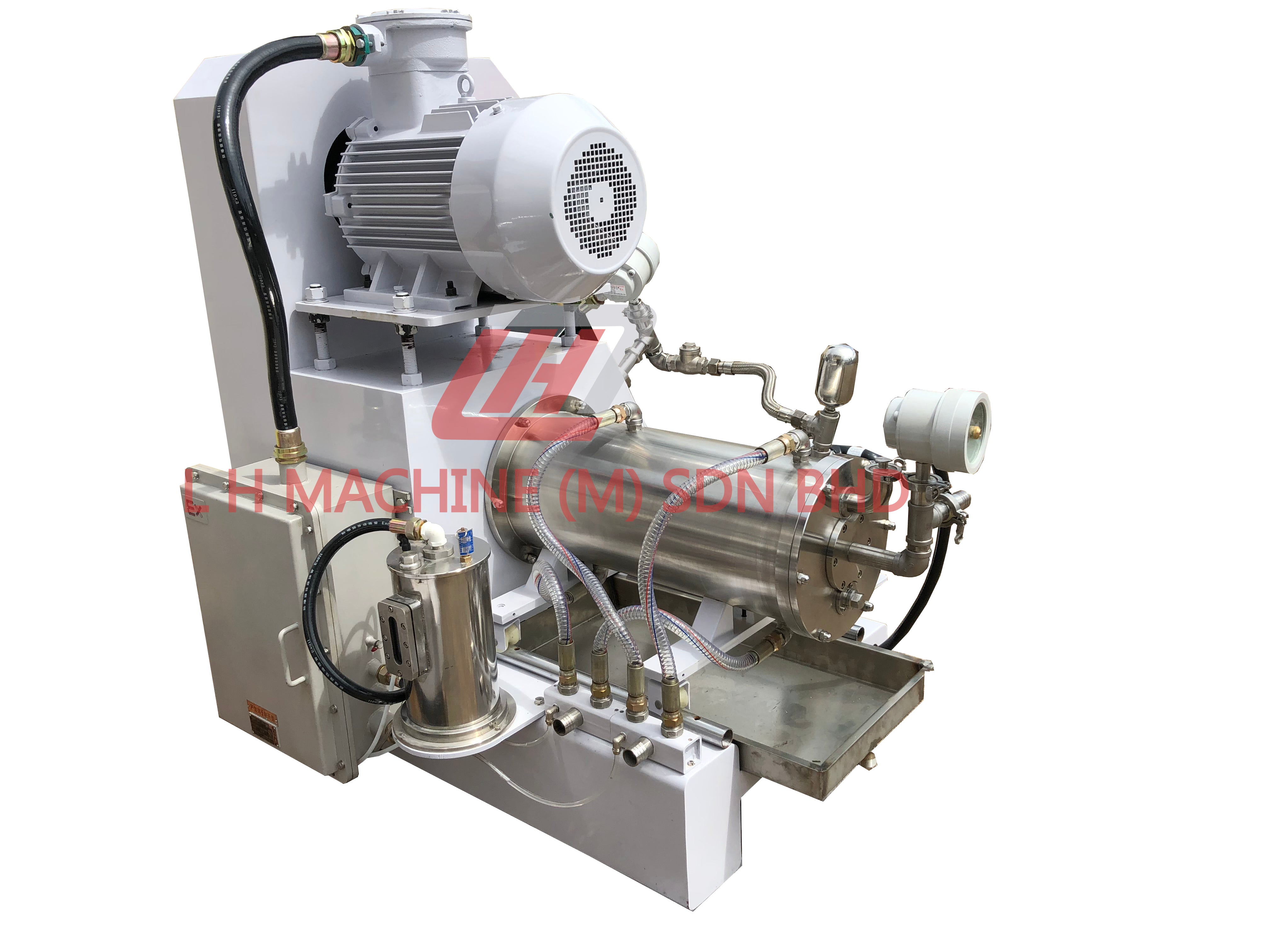

Horizontal Sand Mill is a kind of high efficiency wet-grinding machine widely used in paint, ink, chemical processing industries.
Features:
- Great flow rate and super fine discharging
- Grinding chamber and dispersing disks: Optional material such as stainless steel, polyurethane, wearable stainless steel, ceramics
- Fitted with double-end mechanical seal
| Technical Data |
|
|
|
|
| Grinding chamber volume (L) |
15 |
20 |
50 |
60 |
| Power (kw) |
15 |
18.5 |
30 |
30 |
| Water pressure (MPa) |
0.3 |
0.3 |
0.3 |
0.3 |
| Cooling water consumption (m3/h)
|
2.5 - 3 |
2.5 - 3 |
2.5 - 3 |
2.5 - 3 |
|
Dimension L x W x H (mm)
|
1300 x 650 x 1400 |
1700 x 650 x 1400 |
1740 x 820 x 1600 |
2100 x 820 x 1600 |
*Price to be discuss*
* Data above provided for reference purpose only. Company reserve the right to change or modify any particular without prior notice.
